SEWING MACHINE STAND KES-2000

The sewing machine stand KES-2000, with its extremely generous height-adjustment range, is the top series from Kessler. It features maximum modularity for customized system workstations. The proven electromotor-operated height adjustment via pushbutton, the inclinable tabletop, the ultra-sturdy construction and a large number of sophisticated additional features make KES 2000 the ideal workstation, whether you're seated or standing. KES 2000 enables a perfectly ergonomic working position, whatever your body size or workstyle. The series is also available as an angled table or a table set, in L and U shapes. All-round versatility is further enhanced by a comprehensive, modular accessories package.

  • Sitting and standing position – range 400 mm
  • Extremely smooth running features with highest quality steel
  • High lifting speed of 14 mm/sec at 200 kg load
  • Sewing machine stand with special sturdy lifting gears
  • Highly stable motor bar for extra rigidity
  • All system components maintenance-free
  • Easy to assemble and completely dismantle
  • Tilitable table top supports "VT" for the sewing machine stand are retrofittable
  • Extensive modular concept and accessories for the ultimate individual workstation

THE ELECTRIC HEIGHT-ADJUSTABLE SIT-DOWN OR STAND-UP WORKSTATION

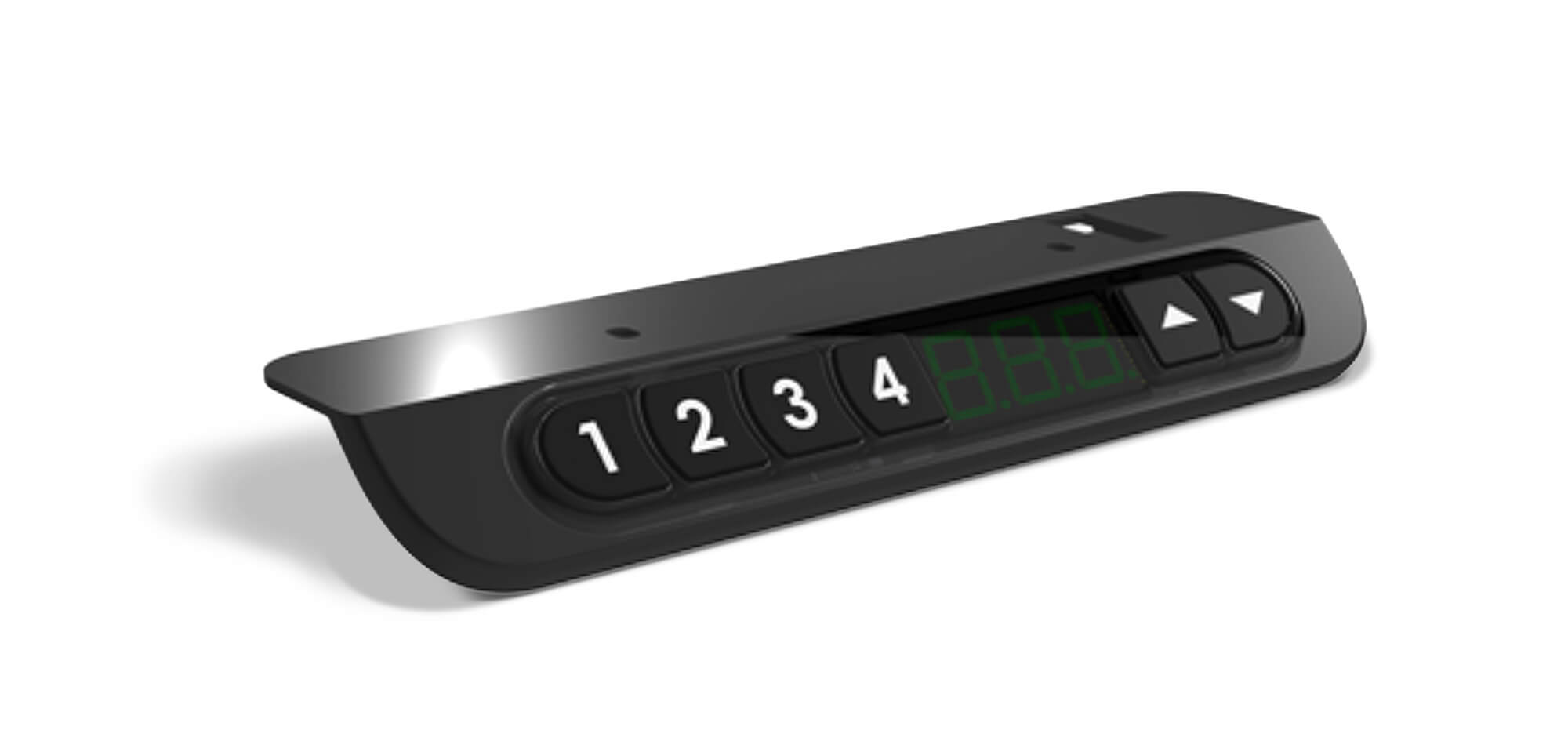

  • Electric height adjustment via push-button
  • Prevents postural damage and signs of fatigue and thus helps to avoid degenerative diseases
  • Robust stand with elegant, timeless design
  • Extremely stable construction
  • Sophisticated modular system
  • Proven in practice 100,000 times over
  • Extensive accessories available

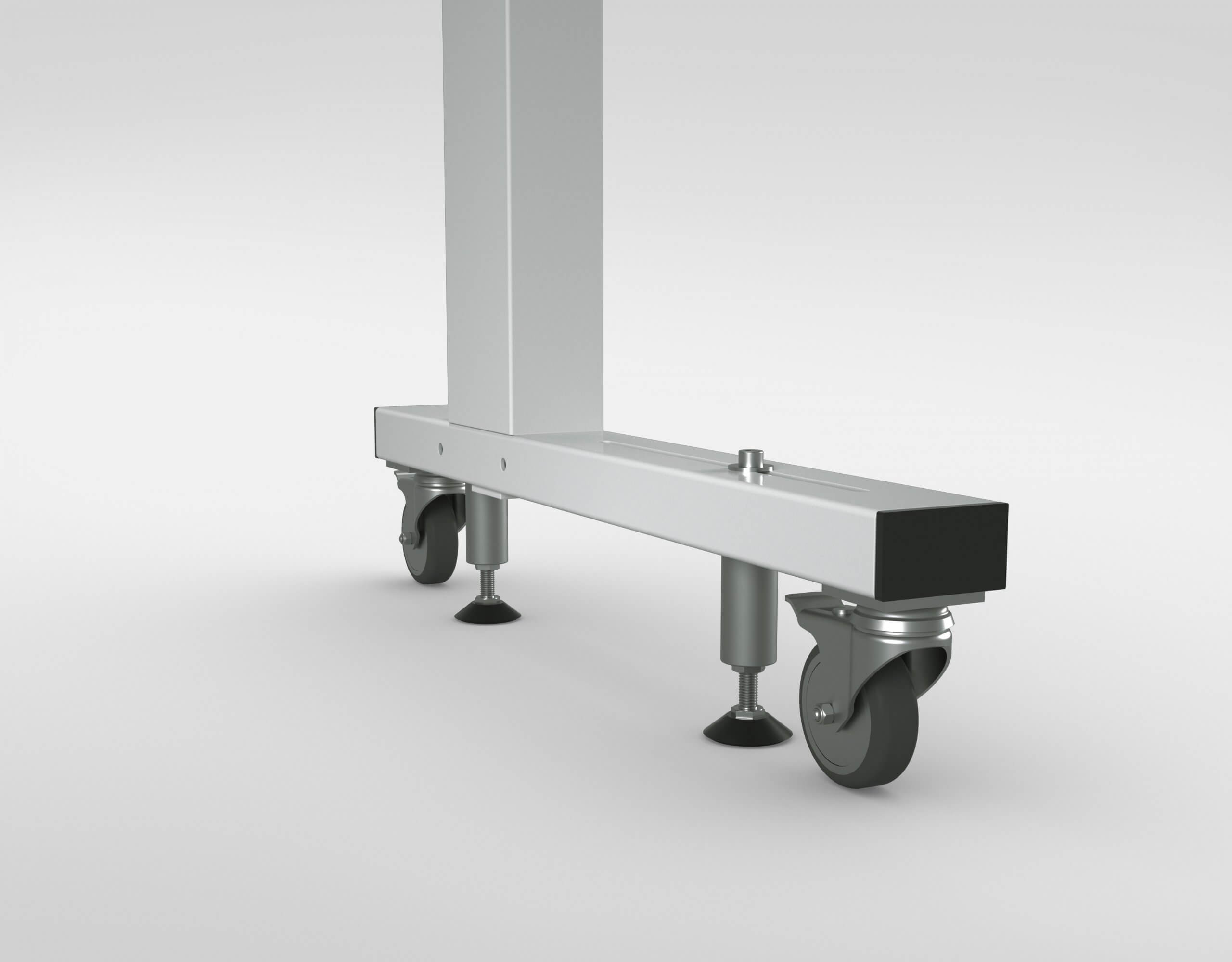

  • Sewing machine stand with vibration-absorbing screw feet or casters
  • Absolute parallel running of the two table top supports ensured by mechanical bonding
  • Maintenance-free – proven by endurance tests over 10,000 double strokes
  • Easy and quick assembly
  • Sewing machine stand with low transport volume, since stand can be completely dismantled

SEWING MACHINE STAND KES-2000 – TECHNICAL DATA

  • Height adjustment range: 685-1,085 mm with glides, without table top thickness, 765-1,165 mm with casters RO75, without table top thickness, for version "VT": plus approx. 40 mm
  • Lift range: 400 mm
  • Lift speed: approx. 14 mm / sec.
  • Rated voltage: Standard: 230 V / 60 Hz; US version 1: 220 V / 60 Hz, US version 2: 110V / 60Hz
  • Standard dimensions - length: 600, 800, 1000, 1,200 mm
  • Standard dimensions - depth: foot: 660 mm, table top support: 480 mm; foot: 760 mm, table top support: 580 mm
  • Treadle bar (optional): horizontally adjustable
  • Weight: approx. 40 kg
  • Load capacity: 200 kg (optionally expandable to 350 kg or 700 kg)
  • Surface: powder-coated in RAL 9002, further RAL colours available on request

SEWING MACHINE STAND KES-2000 – THE FLEXIBLE TABLE SHAPES

SEWING MACHINE STAND KES-2000 – OPTIONS AND VERSIONS

  • „RO75“: Totally lockable casters 75 mm Ø with thread protection
  • „VT“: Retrofittable, tiltable table top support, inclination +/- 10°
  • „VTH“: Stable, tiltable table top support, lockable via hand crank, cannot be retrofitted, inclination +/- 15°
  • Treadle bar "GL": Pedal bar between the two cross-feet for attaching sewing pedals
  • Treadle bar "RO75": Pedal bar between the two cross-feet for attaching sewing pedals
  • Foot extension: 300 mm long, to improve stability when large table tops are installed
  • Stabilizing brace "GL": Lateral extension, e.g. for free-arm sewing machines, for stand with glides
  • Stabilizing brace "RO75": Lateral extension, e.g. for free-arm sewing machines, for stands with casters
  • Z-extension "RO75": 1 set = 4 pieces
  • Special lengths and heights possible
  • Table tops available for all machine types and classes

Prefer things compact? As a Pedestal, the sewing machine stand KEG from KESSLER also features electric height adjustability!
