SEWING MACHINE STAND KES-2100
KES 2100 is the low-cost introduction to optimal workplace ergonomics. You profit from today's maximum modularity for individual system-workstations, and to keep the price down you merely dispense with the additional comfort provided by electric adjustment. KES 2100 ensures a perfect, ergonomic working position, and is the path-breaking workstation whether you're sitting or standing. The easily accessible hand-crank mechanism is totally maintenance-free, and it requires no hydraulics or pneumatics so leakage is ruled out. All-round versatility is further enhanced by a comprehensive, modular accessories package.
- Sitting and standing position – range 400 mm
- Extremely smooth running features with highest quality steel
- Diverse treadle types can be added
- Adjustment by smooth turning crank which can be used on both sides of the stand
- Extra stable back brace for even more rigidity
- Shaft and gear are maintenance-free
- Easy to assemble and completely disassembable
- Tilt plates "VT" can be added
- Extensive modular concept and accessories for the ultimate individual workstation
THE HEIGHT-ADJUSTABLE SIT-DOWN OR STAND-UP WORKSTATION WITH HAND CRANK
- Prevents postural damage and signs of fatigue and thus helps to avoid degenerative diseases
- Robust stand with elegant, timeless design
- Extremely stable construction
- Sophisticated modular system
- Proven in practice 100,000 times over
- Extensive accessories available

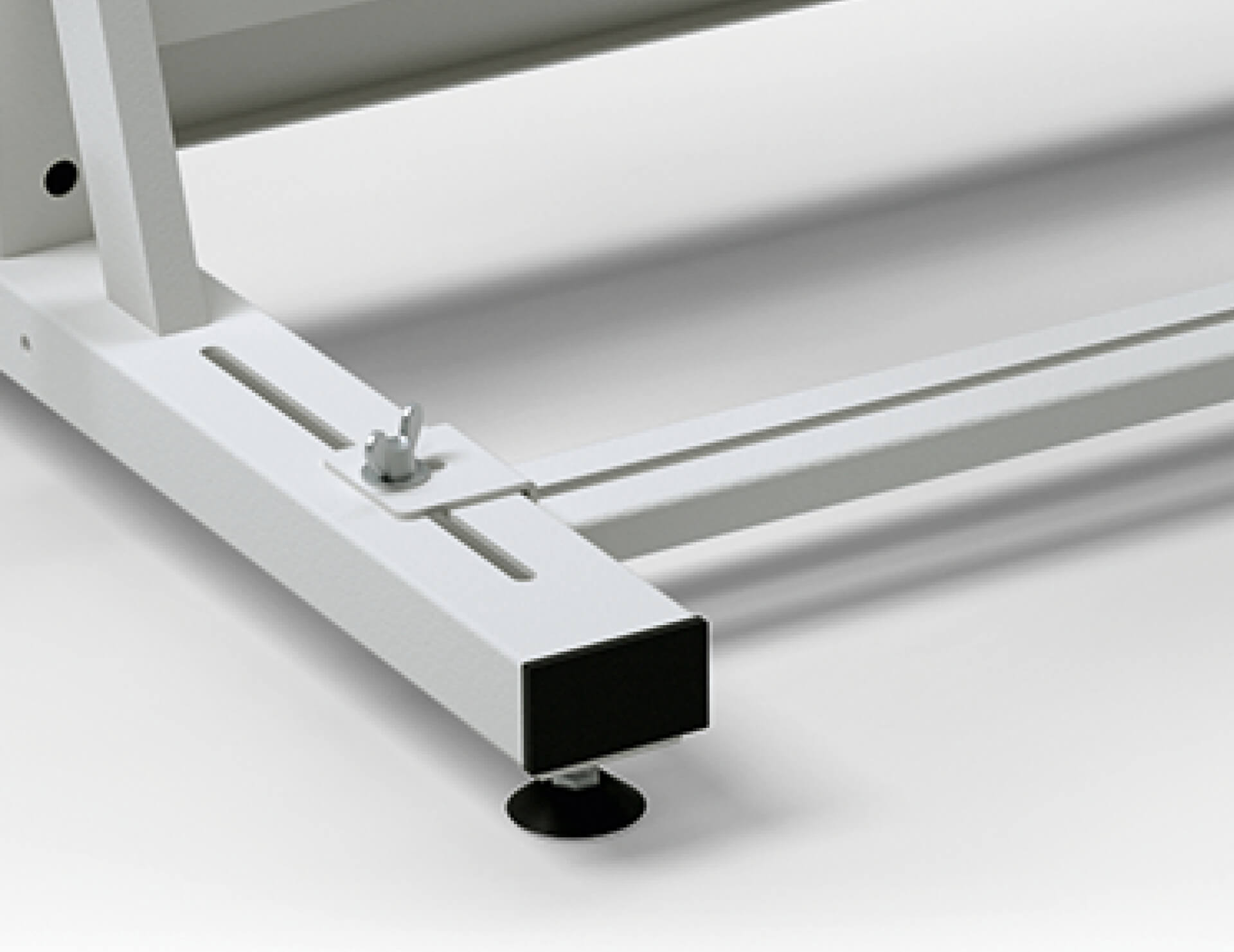

- With vibration-absorbing screw feet or casters
- Sit-down or stand-up workstation with hand crank – and low transport volume
- Easy and quick assembly
SIT-DOWN OR STAND-UP WORKSTATION WITH HAND CRANK KES-2100 – TECHNICAL DATA
- Height adjustment range: 685-1,085 mm with glides without table top thickness, 765-1,165 mm with casters RO75 without table top thickness, for version "VT" plus approx. 40 mm
- Lift range: 400 mm
- Standard dimensions - length: 580, 780, 980, 1,180 mm
- Standard dimensions - depth: foot: 600 mm, table top support: 480 mm
- Treadle bar (optional): horizontally adjustable
- Load capacity: max. 120 kg
- Weight: approx. 26 kg
- Surface: powder-coated in RAL 9002, all RAL colours available on request
ALTERNATIVE WITH HAND CRANK KES-2100 – OPTIONS AND VERSIONS
- "RO75": Totally lockable casters 75 mm Ø with thread protection
- "VT": Retrofittable, tiltable table top support, inclination +/- 10°
- Treadle bar "GL": Pedal bar between the two cross-feet, for attaching sewing pedals
- Treadle bar "RO75": Pedal bar between the two cross-feet, for attaching sewing pedals
- Foot extension: 300 mm long, to improve stability in large table tops
- Stabilizing brace "GL": Lateral extension, e.g. for free-arm sewing machines, for stands with glides
- Stabilizing brace "RO75": Lateral extension, e.g. for free-arm sewing machines, for stands with casters
- Z-extension "RO75": 1 set = 4 pieces
- Special lengths possible
- Table tops available for all machine types and classes
